COM-99610-1

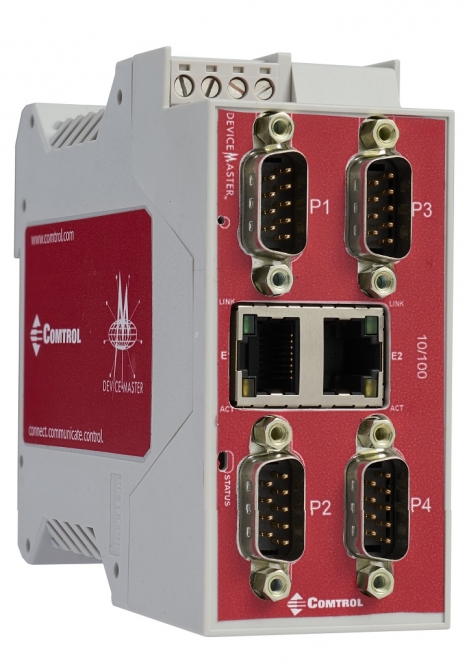

This quality DeviceMaster RTS 4-Port DB9 2E Ethernet device server will keep your networks operating in extreme temperatures

Part Number: 99610-1

The DeviceMaster RTS 4-Port DB9 2E serial device server can be used to network-enable four serial devices on any Ethernet network and is ideal for applications in: traffic and transportation, power utility, industrial automation, material handling and any project that requires serial-to-Ethernet communication with DIN rail-based equipment installations.

• DeviceMaster RTS 4 Port DB9 2E Device
• Loopback Plug
• DIN rail

• Interface Specification10/100BASE-T Ethernet
• Memory
  • SDRAM32 MB
  • Flash8 MB
• EnclosureUL94-V0 Plastic
• Installation MethodDIN Rail (35mm)
• LED IndicatorsStatus, Ethernet Port Link and Activity
• Dimensions4.6” x 3.9” x 1.8”
  116.8mm x 99.1mm x 45.7mm
• Product Weight0.45lbs
  204.12g

• Input Voltage5 – 30VDC
• Power Consumption (Max.)3.0 Watts
• Power Input RedundancyDual Redundant Power Input
• ESD Surge ProtectionProvides minimum of 25KV protection on all serial lines. All Ethernet components are rated to 1.5KV magnetic surge protection.

• Air temperature
  • System On-40 to 75°C
  • System Off-40 to 85°C
• Operating Humidity (non-condensing)0% to 95%
• Altitude0 to 10,000 Feet
  3,048 m
• MTBF (Mean Time Between Failures)42.3 Years

Serial Communications

• Connector TypeDB9 Male
• Number of Ports4
• Software InterfacesRS-232
  RS-422
  RS-485, 4-wire, Master
  RS-485, 4-wire, Slave
  RS-485. 2-wire
• Termination Resistor for RS422/485Software controllable 120Ω termination resistors available for each transmit and receive differential pair on every port. The 120Ω termination resistors can be enabled between TX+ and TX- OR RX+ and RX- or both on every port
• Baud Rate300 bps to 230 kbps
  • Receive Buffer4.5 KB
  • Transmit Buffer4.5 KB
• Device Driver Data Control
  • Data Bits*5, 6, 7 or 8
  • Parity**Odd, Even, Mark, Space, or none
  • Stop Bits***1, 1.5, or 2
  • Flow ControlHardware, Software, None
  • *Data bits 5, 6: Supported only in RFC2217 and socket mode
  • **Mark, Space parity: Supported only in RFC2217 and socket mode
  • ***Stop bit 1.5: Supported only when used with 5 data bits

• Number of Ports2
• Speed10/100Mbps
• Connector TypeRJ45F Auto MDI/MDI-X
• LEDEthernet Link (Green)
  Ethernet Activity (Amber)
• Ethernet specific featuresEthernet packet switching, Auto Negotiation, Link/Activity Status LED
• Network ProtocolsARP, BOOTP, DHCP/RARP, HTTP, HTTPS, SSH, SSL/TLS, ICMP, RFC 1006 (ISO over TCP), SNMP (MIB-II), TCP/IP & UDP socket services, Telnet, and TFTP, and supports IP multicast data transmission

Features

• SNMP SupportMONITORING ONLY
• Other Software FeaturesLowest Latency
  NS-Link COM/TTY port redirector
  TCP/IP & UDP Socket Services
  Telnet/RFC2217 COM Port control
  PortVision DX remote management
• Manufacturer's Warranty5 Years

• Packaged Shipping Weight0.85lbs
  386g
• Package Dimensions6-3/4 x 5-7/8” x 3-1/2”
  171.45 x 149.225 x 88.9mm
• UPC Code7-56727-99610-1
• Country of OriginUSA
• ECCN5A992
• Schedule B Number8471.80.1000

Device Drivers

• Microsoft® Windows® XP through Windows 10
• Linux

• EmissionsFCC Part 15 Subpart B
  Class A limit
  Canadian EMC Requirements
  ICES-003
  European Standard EN61000-6-4
  European Standard EN55022
  AS/NZS CISPR 22
• ImmunityEuropean Standard EN61000-6-2
  European Standard EN55024
  IEC1000-4-2/EN61000-4-2: ESD
  IEC1000-4-3/EN61000-4-3: RF
  IEC1000-4-4/EN61000-4-4: Fast Transient/ Burst
  IEC1000-4-5/EN61000-4-5: Surge
  IEC1000-4-6/EN61000-4-6: Conducted Disturbance
  IEC1000-4-8/EN61000-4-8: Magnetic Field
  IEC1000-4-11/EN61000-4-11: Voltage Dips and Voltage Variations
•
