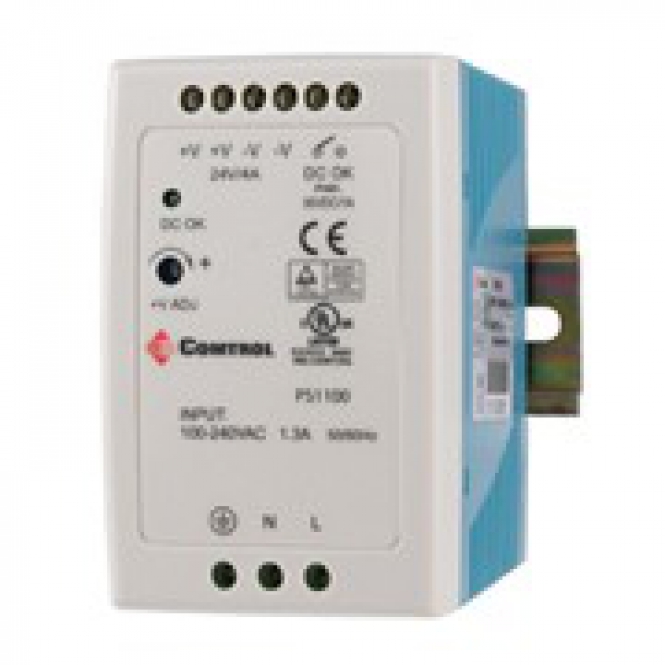

32102-6 Power Supply PS1100 (24V, 100W), DIN RAIL​

This 24V, 100W DIN rail power supply is a slim-design, DIN rail mounted Class I switching power supply, with an extended temperature range

Part Number: 32102-6

• Universal AC input
• Short circuit, overload, over voltage protection
• Air convection cooling
• DIN rail installation
• Built in DC OK active signal
• NEC class 2/ LPS compliant
• Power on LED indicator
• No load power consumption < 1W
• 100% full burn-in tested

System Specifications

Hardware

• EnclosureUL Compliant fully isolated plastic
• Installation MethodDIN rail (35MM)
• DIN Rail SpecTS35/7.5 or TS35/15
• LED IndicatorsOutput voltage status
• Dimensions3.9" x 2.2" x 3.5"
  9.91 x 5.59 x 8.89 cm
• Product Weight0.9 lbs
  408.23 g

Input Specifications

• Connector TypeScrew Terminals
• AC Voltage Range85-264VAC
• Frequency Range47-63Hz
• Power Factor (PF Typ.)≥0.95/230VAC
  ≥0.98/115VAC
• DC Voltage120-370VDC
• Efficiency (Typ.)87%
• AC Current (Typ.)1.3A/115VAC
  0.8A/230VAC
• Cold Start Inrush Current30A/115VAC
  60A/230VAC
• Leakage Current< 1mA/240VAC
• No Load Power Consumption< 1W

Output Specifications

• Connector TypeScrew Terminals
• DC Voltage24VDC
• Rated Current4A
• Current Range0-4A
• Rated Power96W
• Voltage Adjustable Range24 - 30VDC
• Voltage Tolerance±1%
• Ripple and Noise (Max)150mVp-p
• Output Load Derating60% of full load at 60°C
• Line Regulation±1%
• Load Regulation±1%
• Set-Up, Rise Time3000ms, 50ms/230VAC
  3000ms, 30ms/115VAC
• Hold Up Time (Typ.)50ms/230VAC
  20ms/115VAC at full load
• DC OK Active SignalRelay Contact Rating: 30/1A

Protection Specifications

• Short Circuit/Overload
  • Overload Power105-150% of rated power, 100W
  • Overload Protection TypeConstant current limiting. Recovers automatically after fault condition is removed.
• Over Voltage
  • Rated Voltage31.2-36VDC
  • Over Voltage Protection TypeShutdown output voltage, re-power on to recover
• Over Temperature
  • Rated Temperature90°C ± 10°C detection on power transistor heat sink
  • Over Temperature Protection TypeShutdown output voltage, re-power on to recover

Environmental Specifications

• Air temperature
  • System On-10 to 60° C
  • System Off-40 to 85° C
• Vibration
  • Component10-500Hz, 2G 10 min./1 cycle, 60 min. each along X, Y, Z axes
  • MountingCompliance to IEC60068-2-6
• Operating Humidity (non-condensing)20% to 90%
• MTBF (Mean Time Between Failures)39.5 Years

Export Information

• Packaged Shipping Weightl.0 lbs
  458.13 g
• Package Dimensions4.5" x 2.5" x 4.1"
  11.43 x 6.35 x 10.41 cm
• UPC Code7-56727-32102-6
• ECCN4A994
• Schedule B Number8504.40.6007

Regulatory Approvals

• EmissionsEuropean Standard EN61204-3
  European Standard EN55022
  Class B Limit
  IEC 1000-3-2/EN61000-3-2: Harmonic
  Class A Limit
  IEC 1000-3-2/EN61000-3-2: Flicker
• ImmunityEuropean Standard EN61204-3
  European Standard EN55024:
  IEC 1000-4-2/EN61000-4-2: Electrostatic Discharge (ESD)
  IEC 1000-4-3/EN61000-4-3: Radiated Radio-Frequency (RF)
  IEC 1000-4-4/EN61000-4-4: Fast Transient/Burst
  IEC 1000-4-5/EN61000-4-5: Surge
  IEC 1000-4-6/EN61000-4-6: Conducted Disturbance
  IEC 1000-4-8/EN61000-4-8: Magnetic field
  IEC 1000-4-11/EN61000-4-11: Dips and Voltage Variations
• SafetyUL 60950
• OtherEuropean Standard: 2002/95/EC Directive (RoHS)
• Regulatory Approvals


Rev: 04/18
