HIL-CIF104-CCS

Product 1 of 4
Zoom
HIL-CIF104-CCS

HIL-CIF104-CCS

Select Item #: HIL-CIF104-CCS
1070.740 Hilscher Communication Interface PC/104 CC-Link-Slave
plus VAT Weight: 0.3 kg RegulÀr Regular Neu New

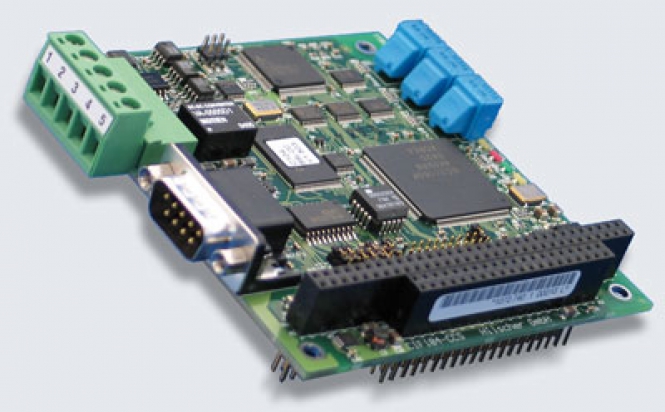

CIF 104-CCS

Communication Interface PC/104
CC-Link-Slave

The CIF 104-CCS interface card is a PC/104 card for use in PC-based controls which are used directly in the automation level. Drivers for Windows, Linux and QNX are available.



Facts at a glance:

  • Fast "Time to Market"
  • Cheaper than own development
  • Easy to configure
  • MFP3 technology

Product CIF 104-CCS
Description Communication Interface PC/104
CC-Link-Slave

Device type Remote Device Station
Transmission rate 156 kbps / 625 kbps / 2,5 Mbps / 5 Mbps / 10 Mbps
Interface RS-485, potential free
LED display RDY, RUN, STA, ERR
Operating voltage 5 V ±5% / 500 mA
Dimensions (LxWxH) 90 x 96 x 25 mm
Operating temperature 0 °C ... 50 °C
EMC Immunity EN 61000-6-2 Industrial Environment
Emission EN 61000-6-4 Class A



Copyright 2014 - Hilscher

Rev: 01/19

Bus PC/104
* plus shipping
