SEA-7161e

7161e COMM+16.PCIe PCI Express 16-Port RS-232 Serial Interface

Description

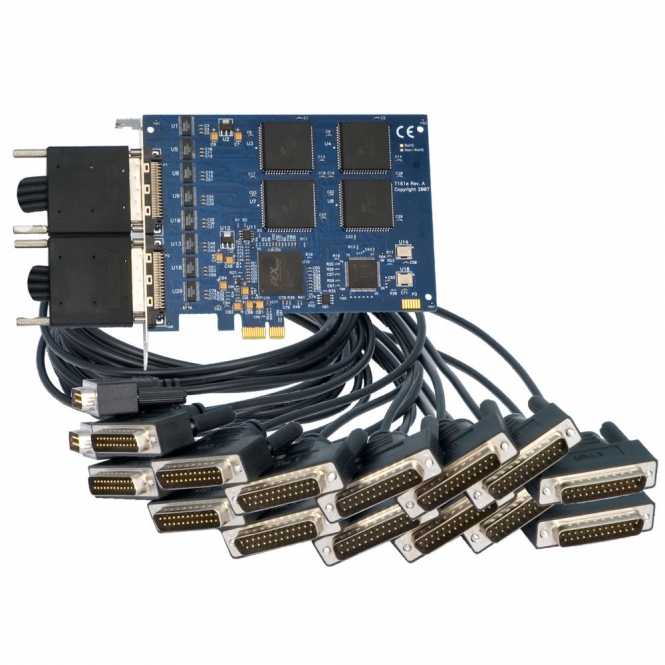

The 7161e provides sixteen RS-232 serial ports capable of data rates to 460.8K bps. Each RS-232 port implements all modem control signals for maximum compatibility with a wide range of peripherals. The board is PCI Express X1 compliant and utilizes 16C854 UARTs to provide 128-byte Tx/Rx FIFOs for maximum reliability in data intensive applications.

The board ships with two 36 inch cables that terminate to sixteen DB25M connectors. For DB9M connectors, select the appropriate cable options.

• • Compliant with RoHS and WEEE directives
• • 16C854 buffered UARTs with 128-byte FIFOs
• • Data rates to 460.8K bps
• • PCI Express X1 compliant
• • All modem control signals implemented
• • Included, two 36 inch cables terminate to sixteen DB-25M connectors (Item# CA202)

Rev: 11/18
