SOA-HXVB-200TA

Zoom

SOA-HXVB-200TA

Item #: SOA-HXVB-200TA

No ratings.

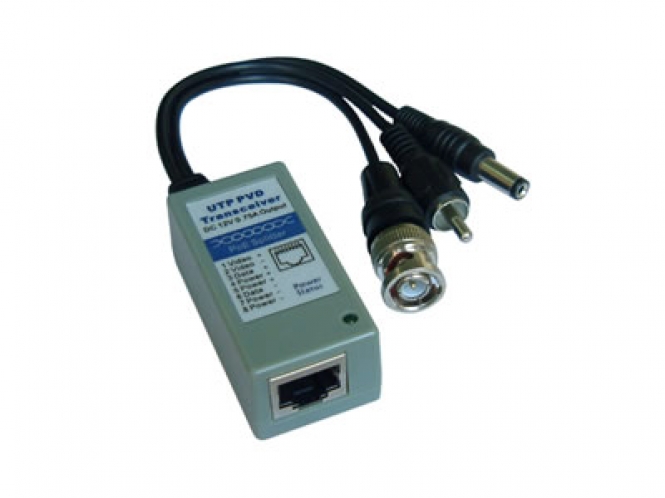

HXVB-200TA PoE UTP Audio + Video Balun Transmitter

17,50 €

Block price:
Frompcs
2 2.5 % Discount
5 5 % Discount
10 10 % Discount
25 12.5 % Discount
50 15 % Discount
75 17.5 % Discount
100 20 % Discount

plus VAT Weight: 0.15 kg RegulÃ€r

Regular

New

Product images

Description

HXVB-200TA PoE UTP Audio + Video Balun Transmitter

Model: HXVB-200TA

Name: PoE UTP Audio + Video Balun Transmitter

Description

HXVB-200TA is PoE UTP audio+video balun receiver which mainly used for security, education and other fields. It uses Cat5 or Cat5e as a transmission medium. It not only can real-time transmit color or black and white baseband video signal, but also can transmit single channel 12V PoE power and single channel audio signal. It can offer power for cameras. It will save wiring costs, simplify your wiring works.

Feature

Real-time transmission of High-Definition video signals.
Transmission distance up to 300m, transmission distance up to 900m if working with HXVB-300R.
NTSC, PAL, SECAM video formats
Offer power for cameras and get the audio,video signal in 1 utp cable.
super interference rejection, 3rd level lightningproof, built-in surge&transient protection

Specification

Transmission distance	300m, 900m working with HXVB-300R
Signal Type	Video(PAL, NTSC, SECAM and other baseband video signal), audio, power
Power Supply	12V DC Output, 0.75A
Connector	Coaxial BNC(female), audio RCA, RJ45, DC 5.5 cable
Surge Protection	6000V 10uS*700uS IEC61000-4-5
Frequency response	DC-6MHz
CMRR	0 to 6MHz 60dB (typical)
Impedance	Coax (BNC female) 75 Ohm; UTP (unshielded twisted pair) 100 ohms
Cable Type	Cat5 or Cat5e unshielded twisted pair
Cable Impedance	100 ± 20 ohms
Distributed capacitance	less than 62pF/m
DC loop resistance	18 Ohm/100m
Operating temperature	-20^oC~70^oC
Relative Humidity	0~95%(non-condensing)
Storage temperature	-40^oC~150^oC
Dimension	54mm x 23mm x 28mm
Net Weight	48g
Gross Weight	106g(together with HXVB-200RA)

Rev: 03/14
