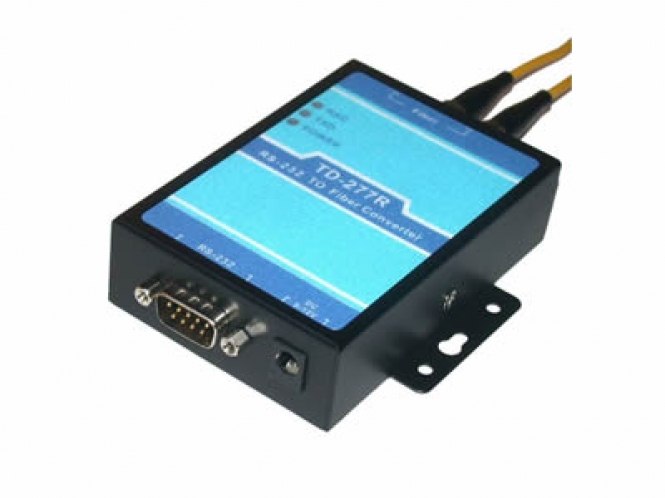

SOA-TD-277R-MM

TD-277R-MM RS-232 to Multi-Mode Fiber Converter is a professional design in order to solve the RS-232 serial signals and multi-mode fiber optic signals for communication. RS-232 to Multi-Mode Fiber Converter provide users transparent transmission from RS-232 serial port to fiber port, the user need not change the existing software, can send the RS-232 serial signals to long distance stability. TD-277R-MM RS-232 to Multi-Mode Fiber Converter for use with methods of work in pairs, it would be more convenient to the user's RS-232 serial signal through fiber optic transmission and then revert to the RS-232 serial signal. In optical fiber is optical signal, there is no electrical conductivity, it will not be the impact of electromagnetic waves and the thunder and lightning, which has a strong anti-jamming capability. Particularly suitable for the work environment is harsh, distant outdoor occasions to use.

• Optical signals transparently convert RS-232 signals without the need for jumper settings, automatically switching.
• Unique zero-delay auto-conversion transceiver technology and the baud rate adaptive technology.
• Automatic control of data flows, does not require any handshaking signals (such as RTS, DTR, etc.)
• The power with some positive and negative connect inversely protection and the internal overcurrent protection.
• Products to overcome the traditional RS-232 signal transmission distance is short, defects and poor anti-interference ability
• To solve the electromagnetic interference, ground loop interference and lightning and surge problems, ensuring the reliability of communication, security.
• Product Support Wall, industrial rail-mounted
• Supports RS-232 (DB9 female) port
• Automatically detects the serial port baud rate, determine the direction and control of data transfer
• Working wavelength: 850nm
• Maximum communication speed 500Kbps
• Multi-mode optional ST/SC connector
• Multi-mode communication distance reach 2 km
• Interface 1500W surge protection, 15KV ESD protection
• Single/Dual fiber port can be choosed according to customer demand

• Standard: Accord EIA RS-232 standard
• RS-232 serial signal: TX, RX, GND
• Fiber signal: IN, OUT
• Electricity port transmission: 15m
• Optic port transmission: Multi-mode 2KM
• Optical wavelength: Multi-Mode 850nm
• Baud rate: 300~115200bps adaptive
• Surge Protection: 600W
• Input power: 5~12V
• Working method: RS-232 without jumpers, point to point transmission
• Data direction control: Using data flow control technology, automatic discriminate and control the direction of data transfer.
• Working temperature: -25ºC~70ºC
• Storage temperature: -40ºC~85ºC
• Operating Humidity: 5%~95% relative humidity
• Consumption: 2W
•
