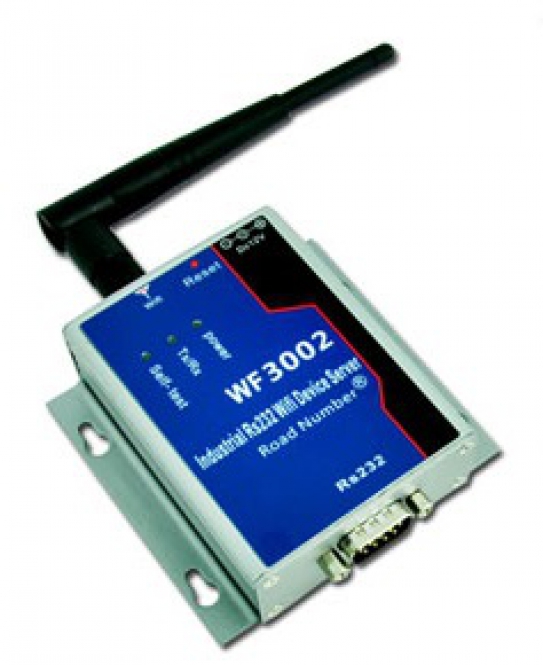

SOA-WF3002

• WF3002 WIFI virtual serial port can be done , we installed the software distribution , and the device is fully equivalent to the one computer in the wireless communication. Simple and practical. WF3002 is a transparent transmission equipment , transmission transparent way , it can also be closed , you do not know WIFI, do not understand the technical details , you can use our software to extend wireless serial port, liberated your serial devices , attendance, access control, serial printer , RFID, PLC , etc. love to put where to put where. There are four corners stand by wireless terrestrial plant router , WF3002 and Siemens PLC connection RFID, mobile work carried out in the packing plant
• WF3002 modules can set the operating mode , built-in web page or by logging in via AT commands , you only need to set once, then every time you start will follow this work mode.
• WF3002 module sets the reset button. Press three seconds that can enter the factory state.
• WF3002 module also can be equipped with an external DC power cord , you can access the battery for outdoor operation.
• WF3002 with Android phones can also log in directly to the built pages , you can use your phone Smart family , and other supporting development . We are not like some of the other products require a patch in order to access or can not be accessed. We offer both Andrews and Andrews test software programming examples.
• Power Supply: DC 5~12V
• Dimension: 80mm x 45mm x 25mm

High-speed UART
. Supports baud rate range: 1200 ~ 921600bps
. Support for hardware flow control (RTS / CTS)
. Technical support using DMA burst transfer (burst transfer)
High-speed SPI
. Supports a maximum clock frequency of 50MHz
. Support Mode0 and Mode3 timing mode
. MSB first pass
. Technical support using DMA burst transfer (burst transfer)
Wireless
. Support IEEE802.11b / g wireless standards
. Support Frequency Range: 2.412 ~ 2.484 GHz
. supports two types of wireless networks: basic network (Infra) and ad hoc network (Adhoc)
. Support for multiple security authentication mechanisms: WEP-64/128, TKIP (WPA-PSK), AES (WPA2-PSK)
. Support for fast networking
Other
. Supports TCP, UDP, ICMP, IGMP, DHCP, ARP, DNS, SMTP, SNTP, PPPoE and HTTP network protocols
. Support for transparent data transmission
. Support for a variety of parameters configurations: Serial / WEB / wireless connection
. Integrated PCB antenna
. Online firmware upgrade
. GPIOs
