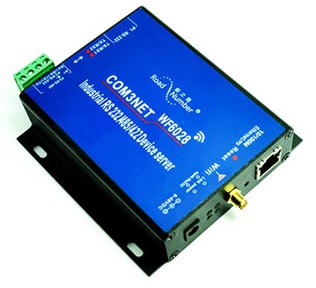

WF6028 RS232/RS485/RS422 to WiFi/RJ45 Converter
RS232/RS485/RS422 to WiFi/RJ45 Converter



Model: WF6028
Name: RS232/RS485/RS422 to WiFi/RJ45 Converter



Feature
The network can support RJ45, can also support WIFI wireless.
The serial port can support 232, 485 can also support the middle DIP switch for customers to choose.
Transparent transmission can be wired to wireless.
Can achieve wireless card to a wired data transformation.
Nine-pin serial port terminal 232, nine-pin serial port with a computer, the end of AB 485 two-wire access.
9-30V wide voltage input.
Provide round hole switching power supply, can also provide two-wire power supply user-friendly access to outdoor access the battery or other power source.
Do not worry about setting the wrong, the network has a hidden reset button side, working condition, press release 3-5 seconds to load the default settings and auto-restart)
The default factory configuration: 192.168.0.254, port number 8899, 9600 baud, 8 data bits, 1 stop bit, no parity.
Factory standard switching power supply, black aluminum shell, both sides have hanging holes.
Number of road brand, customers can OEM,
Batch can be more favorable factory prices.
Software can provide the code for the secondary development




Specification

Adhoc and Infra
1: STA sites, each terminal (such as laptops, PDA and other devices can be networked users) to connect to a wireless network can be called a site. 2: AP, which is the wireless access point is a wireless network creator, is the central node of the network. General home or office wireless router used on an AP. Automatic mode / command serial command AT + instruction set
Network Protocol TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP
Network type Infra / Adhoc
Security WEP/WPA-PSK/WPA2-PSK
Encryption type WEP64/WEP128/TKIP/CCMP (AES)
Interface: RJ45, RS-232, RS-485, RS-422,
IEEE802.3af-compliant, powered through the network cable is a standard way of POE PD terminal equipment
Wireless wifi antenna supports baud rates range: 1200 ~ 115200bps
Power Supply: DC 6V－DC 30V
Storage Temperature: -45 ℃ ~ +85 ℃
Working Temperature: -45 ℃ ~ +75 ℃

Rev: 10/14
