SOA-SLCI4006

Zoom

SOA-SLCI4006

Item #: SOA-SLCI4006

No ratings.

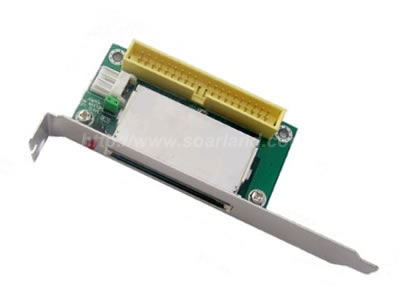

Bracket 40-Pin Male IDE To CF Card Adapter

8,70 €

Block price:
Frompcs
2 2.5 % Discount
5 5 % Discount
10 10 % Discount
25 12.5 % Discount
50 15 % Discount
75 17.5 % Discount
100 20 % Discount

plus VAT Weight: 0.1 kg RegulÃ€r

Regular

New

Product images

Description

CF / CFast

Bracket 40-Pin Male IDE To CF Card Adapter

Model :	SLCI4006	Name:	Bracket 40-Pin Male IDE To CF Card Adapter
Description :
The SLCI4006 Bracket 40-Pin Male IDE To CF Card Adapter is transparent to the operating system and does not require any drivers. With this adapter, the host PC will identify the inserted CF card as a standard IDE hard disk. As such, you can install any operating systems and the CF card will be bootable , CF card offer the benefit of low power consumption, no acoustic noise, cost efficient and fast read access time , avoid damaging mechanical HDD cause of by turnning on/off power freqently. The SLCI4006 Bracket 40-Pin Male IDE To CF Card Adapter can used for computer peripheral device factory , industial computer , personal computer . The SLCI4006 Bracket 40-Pin Male IDE To CF Card Adapter works with an 40-Pin ATA cable and floppy driver power supply , it also can fix on PCI bracket for external application .
Specification & Features:
40-Pin standard Male IDE connector. 50-Pin standard compact flash socket. +5 V floppy disk drive power connector. PCI rear bracket for external application . Left-side LED indicators for power-on . Master or slave mode selection. Each jumper has a cap , Mode select , cap on is master , cap off is slave . Compatible with Compact Flash Type I, Type II, and support IBM Micro-drive with CF-II interface. Supports DMA and Ultra DMA modes. A compatible flash media card will be required to use these modes. Compatible* with DOS, Windows 3.1, NT4, 98SE, Me, 2000 and XP, Vista, Unix, Linux . Max size: 120.2mm * 40mm * 21.5mm (bracket height).

Product Dimension & Drawing :

drawing of Bracket 40-Pin Male IDE To CF Card Adapter

Rev: 10/13
