SOA-HX-430

SOA-HX-430

Select Item #: SOA-HX-430
2-port IDE PCI Card
Select

  • Block price:

  • pcs
  • 2.5 % Discount
  • 5 % Discount
  • 10 % Discount
  • 12.5 % Discount
  • 15 % Discount
  • 17.5 % Discount
  • 20 % Discount
plus VAT Weight: 0.2 kg RegulÀr Regular Neu New

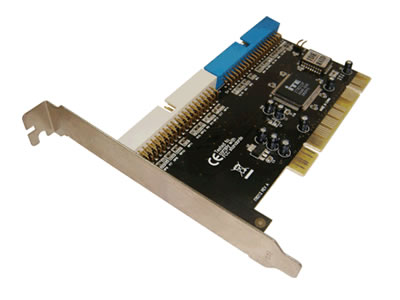

2-Port IDE PCI Card

Model :
 HX-430
Name:
 2-Port IDE PCI Card
Specification & Features:
2 Port ATA/133 IDE Controller is compliant with UDMA5 ATA/100 and UDM6 ATA/13 specification.
Data transfer rate up to 100MB/sec or 133MB/sec.
Compliant with PCI specification Revision 2.1&2.2
IDE Controller PCI Card is compliant with PCI IDE Controller specification Revision 1.0
Compliant with Programing Interface for Bus Master IDE Controller
Two independent Ultra ATA channels with 128/256 bytes buffer per channel
Connect up to four IDE/ATA devices (coexist with on-board IDE ports)
Fully backwards compatible with Ultra ATA/100,Ultra ATA/66.Ultra ATA/33,EIDE/Fast ATA-2 , IDE and ATAPI devices
Automatic tuning for devices attached
Support Ultra and Multi-Word DMA timing modes
Enhanced data integrity of transferred data with CRC
Supports MS Windows 98/SE/ME/2000/XP


Rev: 10/13

Ports 2-port
Bus PCI
