SOA-HX-436

Zoom

SOA-HX-436

SOA-HX-436

Select

Item #: SOA-HX-436

No ratings.

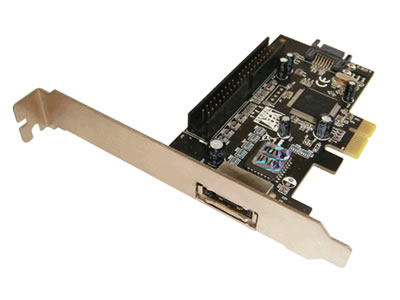

JMB363 ESATA SATA IDE PCI-Express Card

26,00 €

Select

Block price:
Frompcs
2 2.5 % Discount
5 5 % Discount
10 10 % Discount
25 12.5 % Discount
50 15 % Discount
75 17.5 % Discount
100 20 % Discount

plus VAT Weight: 0.2 kg RegulÃ€r

RegulÃ€r

Regular

Neu

New

Product images

SOA-HX-436

Description
Specification

PCIe Controller Card

JMB363 ESATA SATA IDE PCI-Express Card

Model :	HX-436	Name:	JMB363 ESATA SATA IDE PCI-Express Card
Specification & Features:
Chipset: JMB363 Interface: 1 x ESATA & 1 x SATA II & 1 x IDE port. 1-Lane (x1) PCI-Express with transfer rate 2.5 Gb/s Full Duplex channel Compliant with PCI-Express Revision 1.0a SATA II Interface Compliant with Serial ATA II Specification Compliant with Gen2i, Gen2m SATA II Electrical Specification Revision 1.0 Data transfer rate up to 3.0Gb/s Backward compatible to SATA 1.0 Specification Support Native Command Queue (NCQ), FIS Based Switching with Port Multiplier Hot plug of external SATA devices supported All external ports are compatible to eSATA Specification Supports up to 0, 1, 0+1, JBOD function Support Win2000/XP/Server 2003/XP/Vista

Rev: 10/13

Bus	PCI-Express
