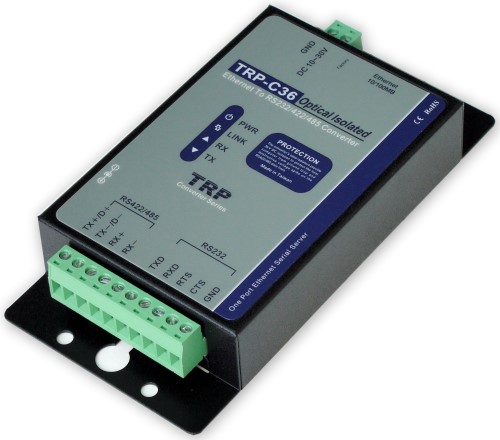

TRP-C36    Ethernet to RS-232/422/485 Isolated Converter


Introduction

TRP-C36, a high speed, single-port serial device, is designed to instantly convert data from

RS-232/422/485 interfaces to an Ethernet network running at the TCP/IP, UDP protocol.

By using a standard COM port and existing network infrastructure the device allow you to link

together a distant RS-232/422/485 serial device. You can reach TRP-C36 from Windows and

Linux without the need to modify existing software.

TRP-C36 supports 10/100Mbps auto-detecting, and auto RS-485 data direction flow control,

it also provides with 3000V DC isolation and internal surge protection to protect the converter

against high input voltage spikes and ground potential differences,

and ensure a save data transmission on network.

The industry standard DIN rail and panel mounting design enable user a fast and

professional installation.



Features

Wide input range DC power supply.

Fully compatible with Ethernet TCP/IP protocol.

Support 3000V DC isolation protection.

Auto direction flow control on RS-485.

Surge protection on RS-422/485 data lines.

Support baud rate up to 230Kbps.

Power/Link/TX /RX mode LED indicator.

Support intranet and internet system setting function.

Support screw terminal and standard external DC power adaptor.

Virtual COM drivers for Windows 98/WIN2000/WIN XP/Vista/

WIN2003/WIN 7/WIN8/WIN8.1.

DIN rail and panel mount.



Specifications

Power Input Voltage: DC +10V to +30V

Interface: Standard RJ45 LAN port

LAN: 10/100Base-T, 10/100Mbps auto-detecting.

RS-232: 5 full-duplex (TXD, RXD, CTS, RTS, GND)

RS-422: Differential 4 full-duplex wires ( TX+ , RX+, TX- , RX-).

RS-485: Differential 2 half-duplex wires (D+, D-)

Connection type: Screw terminal, accepts AWG#12~30 wire.

Signal LED: Power, Link, TX, RX

Power supply: Screw terminal, or external DC adapter.

Power consumption: 1.6W

Isolation voltage: 3000V DC

Operating environment: -10 to 50℃

Storage temperature: -20 to 70℃

Humidity: 10~90% Non-condensing

Dimension: 151mm X 75mm X 26mm

Weight: 375g

Rev: 12/19

Ports 1-port
