SEA-TB02-KT

Zoom

SEA-TB02-KT

Item #: SEA-TB02-KT

No ratings.

TB02-KT Terminal Block Kit DB37 Male and DB37 Female to 37 Screw Terminals

39,95 €

plus VAT Weight: 0.6 kg RegulÃ€r

Regular

New

Product images

Description

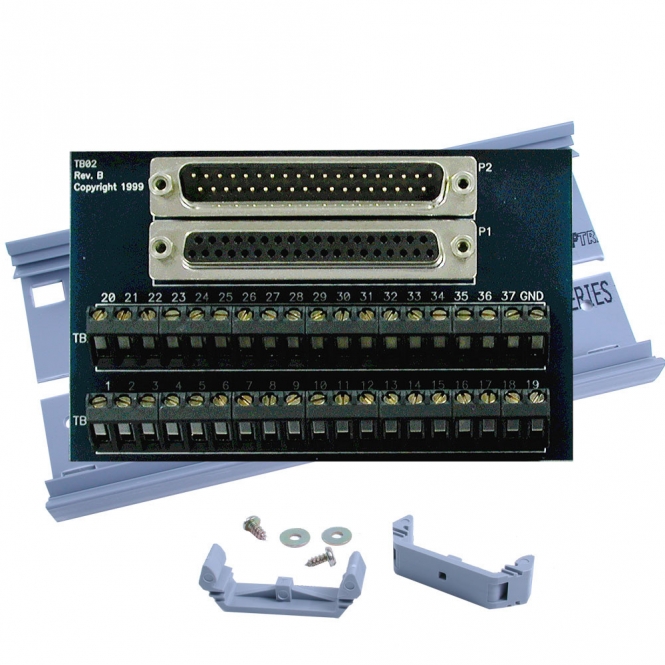

TB02-KT Terminal Block Kit – DB37 Male and DB37 Female to 37 Screw Terminals

Description

The TB02-KT terminal block can be used to break out serial and digital DB37 connectors to screw terminals for easy field wiring. The terminal block was designed with both DB37 male and female connectors, therefore; it can be used with any DB37 board regardless of the board’s port gender.

The TB02-KT ships with a RoHS compliant TB02 terminal block, a 6 piece of slotted Snap Track, and two DIN-rail mounting clips.

• Compliant with RoHS and WEEE directives
• Terminal block has both DB-37M and DB-37F connectors and 37 screw terminals
• Connectors and screw terminals are pinned one-to-one
• Can be easily mounted using the included 6 Snap Track and DIN-rail clips

Rev: 11/18
