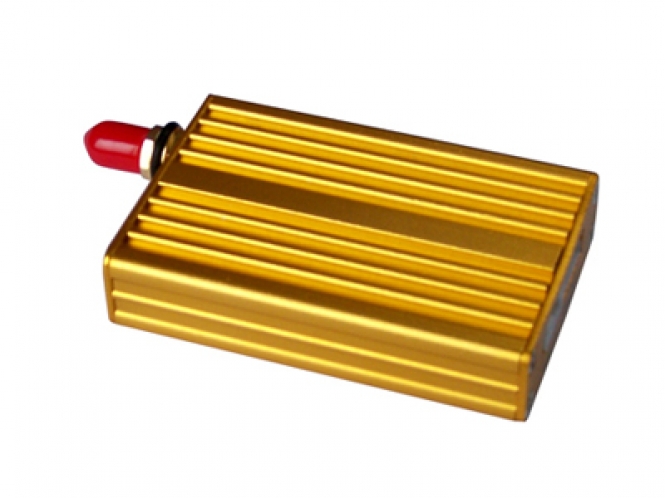

HXJZ-882 2000m-2500m Low Power RS-232/RS-485/TTL to RF Wireless Module
Select

  • Block price:

  • pcs
  • 2.5 % Discount
  • 5 % Discount
  • 10 % Discount
  • 12.5 % Discount
  • 15 % Discount
  • 17.5 % Discount
  • 20 % Discount
plus VAT Weight: 0.4 kg RegulÀr Regular Neu New

HXJZ-882 2000m-2500m Low Power RS-232/RS-485/TTL to RF Wireless Module
2000m-2500m Low Power RS-232/RS-485/TTL to RF Wireless Module



Model: HXJZ-882
Name: 2000m-2500m Low Power RS-232/RS-485/TTL to RF Wireless Module



Description
HXJZ-882, the Micro-power wireless transceiver data module is used as the wireless data transceiver in long distance, with the small size, weight and power consumption and good stability and reliability.



Specification
  • uses GFSK modulation mode, reliable line of sight transmission distance up to 2000m;
  • carrier frequency 490MHz, measurement frequency;
  • provides 16 channels;
  • interface / channel rate: 1200/2400/4800/9600bps;
  • Interface: TTL, RS-232, RS-485 selected by the user;
  • transceiver, half duplex communication, send and receive dataconversion automatically, as long as the interface to send / receivedata to the conversion time is short;
  • can be used for point to point, multipoint, multi-pointcommunication and other combinations;
  • transparent data transmission, can transmit long data frames;
  • automatically filter out false data generated in the air, long-term reliability is good, very low failure rate;
  • Power: Power 500mw, receiving current <45mA, transmittingcurrent <360mA, Sleep current <0.1mA;
  • Three power modes: hardware wake up, wake up the serial port, air wake;
  • Power Supply: DC +4.5 V ~ +5.5 V;
  • Temperature: -25 ℃ ~ +85 ℃;
  • size: 58mm × 38mm × 10 mm (without antenna base); Weight: 17 grams;
  • exchange model: HXJZ-88 series;
  • Standard Antenna: SMA thick whip antenna or a small suction cup.



Feature

Using CC1020 chip, bare boards, small size, easy to useembedded.
Narrowband interference is strong, with a filter circuit, high receiver sensitivity, power, transmission is stable and reliable distance.



Antennas
RF Module Antennas



Application
  • AMR Automatic Meter Reading
  • Wireless alarm and security systems
  • Home automation
  • Low power telemetry
  • Wireless conference voting system;
  • Sports training & competition;
  • Wireless dishes ordering;
  • Wireless POS, PDA wireless smart terminal;
  • Electronic bus station and intelligent traffic;
  • RF transmitter Wireless electronic display screen and queuing machine;
  • Wireless telemetry Charging for parking, parking lot;
  • Wireless modem Automobile inspection and four-wheel orientation;
  • Wireless sensor Industrial wireless remote control and air conditioning remote controller;
  • Observation and predication of oil well and hydrological information;
  • Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;
  •

Rev: 07/13
