HXSP-166 Long Range RS-232 Optoelectronic Isolator
Select

  • Block price:

  • pcs
  • 2.5 % Discount
  • 5 % Discount
  • 10 % Discount
  • 12.5 % Discount
  • 15 % Discount
  • 17.5 % Discount
  • 20 % Discount
plus VAT Weight: 0.1 kg RegulÀr Regular Neu New

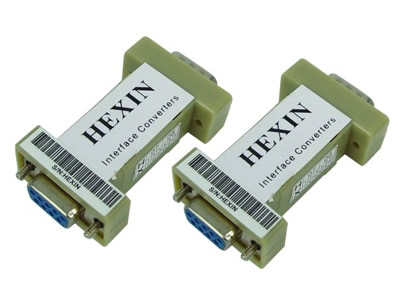

HXSP-166 Long Range RS-232 Optoelectronic Isolator
Long Range RS-232 Optoelectronic Isolator



Model: HXSP-166
Name: Long Range RS-232 Optoelectronic Isolator
Description :
HXSP-166 Long Range RS-232 Optoelectronic Isolator, is a kind of RS-232 system communication serial port optic isolation product, at the same , it can let the communication distance of RS-232 devices up to 12KM. This product support transmission rate as high as 57,600bps, no external power needed, optic electric isolation 7500V. According to different customer need, there are 3 lines, 5 lines(HXSP-158) two types, separately corresponds to three line serial port application, five lines serial port application application with RTS/CTS (or DTR/CTS). You can also choose extend the serial port RS-232 telecom distance to 12 kilometers HXSP-166.
Specification & Features:
One box contains a pair of HXSP-166, it must work together.
Extend the communication distance of RS-232 devices up to 12KM .
Plug and play ,neednot driver.
Port-powered, lowest consumption .
Standard: Accord EIA RS-232 standard .
Connector: DB-9 female, DB-9 male
Working: Asynchronism, point to point .
Baud Rate: 0~57600bps.
Isolation Voltage: 7500V Instantaneous, 2500V continuous
Dimension: 62mm x 32mm x 18mm
Weight: 25g(One Unit)


Rev: 06/13
