HXSP-2108A Optical Isolation RS-232 to RS-485 Converter
Select

  • Block price:

  • pcs
  • 2.5 % Discount
  • 5 % Discount
  • 10 % Discount
  • 12.5 % Discount
  • 15 % Discount
  • 17.5 % Discount
  • 20 % Discount
plus VAT Weight: 0.3 kg RegulÀr Regular Neu New

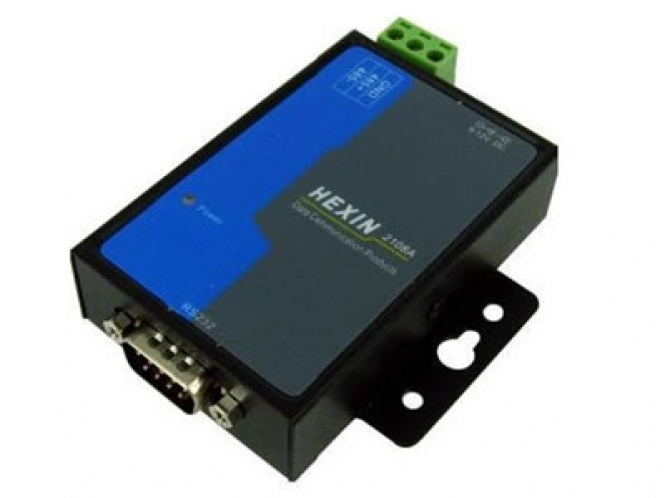

HXSP-2108A Optical Isolation RS-232 to RS-485 Converter
Optical Isolation RS-232 to RS-485 Converter



Model: HXSP-2108A
Name: Optical Isolation RS-232 to RS-485 Converter
Description :
HXSP-2108A converter is the communication converter which change RS-232 signal to RS-485 signal completely isolate. It has the strong drive capability which can drive max to 64 devices on the bus. The communication distance max up to 1000 meters. It is designed elegantly, easy to connect wire, convenient to use. It is widely used in industrial monitoring, civilian PTZ monitoring, and industrial control equipment, and other fields
Specification & Features:
Standard: Accord EIA RS-232, RS-485 standard.
Connector: DB9 female on RS-232 side, 3 terminal block on RS-485 side.
Optical isolation voltage: 2.5kv pulse/500v continuous
Work methods: asynchronous, point to point or multi-point, 2 wire half-duplex.
Transmission medium: Ordinary Line , twisted pair cable or Shielded Wire
Baud rate: 300~115000bps.
Transmission distance:1km (9600bps)
Power Supply: 12VDC/mA.
Dimension : 53mm x 80mm x 20mm


Rev: 03/19
