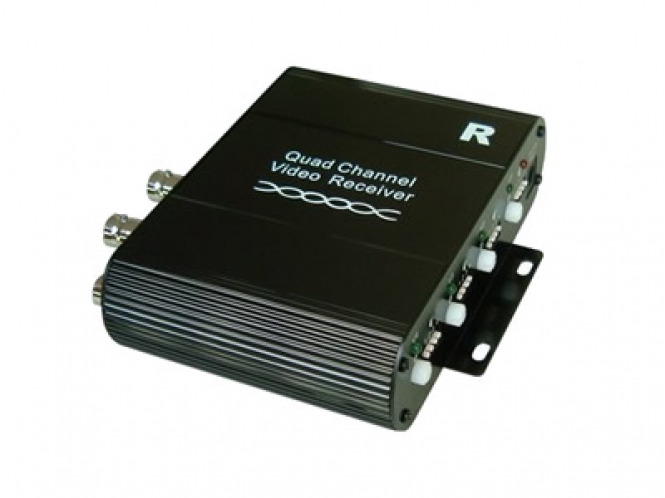

HXVB-140R 4 Channel Active UTP Video Balun Receiver
Select

  • Block price:

  • pcs
  • 2.5 % Discount
  • 5 % Discount
  • 10 % Discount
  • 12.5 % Discount
  • 15 % Discount
  • 17.5 % Discount
  • 20 % Discount
plus VAT Weight: 0.25 kg RegulÀr Regular Neu New

HXVB-140R 4 Channel Active UTP Video Balun Receiver
4 Channel Active UTP Video Balun Receiver



Model: HXVB-140R
Name: 4 Channel Active UTP Video Balun Receiver



Description
HXVB-140R is 4 channel active UTP video balun receiver which mainly used for security, education and other fields. It uses Cat5 or Cat5e as a transmission medium. It can real-time transmit 1800 meters color or 2400 meters black and white baseband video signal if working with active receivers. and it can real-time transmit 1200 meters color or 1800 meters black and white baseband video signal if working with passive transceiver. it will save wiring costs, simplify your wiring works.



Feature
  • Real-time transmission of High-Definition video signals.
  • Transmission distance up to 1800m color signal working with active transmitter.
  • 12~16V adaptive DC power supply input.
  • NTSC, PAL, SECAM video formats
  • Highlight second oxidation aluminum case
  • Super interference rejection, 3rd level lightningproof, built-in surge&transient protection



Specification
Transmission distance
0~1800m
Signal Type
Video(PAL, NTSC, SECAM and other baseband video signal)
Power Supply Input
12~16 DC
Connector
4 x Coaxial BNC(female), twisted-pair terminal, RJ45, DC 5.5 connector
Surge Protection
6000V 10uS*700uS IEC61000-4-5
Frequency response
DC-8MHz
CMRR
0 to 8MHz 60dB (typical)
Impedance
Coax (BNC female) 75 Ohm; UTP (unshielded twisted pair) 100 ohms
Cable Type
Cat5 or Cat5e unshielded twisted pair
Cable Impedance
100 ± 20 ohms
Distributed capacitance
less than 62pF/m
DC loop resistance
18 Ohm/100m
Operating temperature
-20oC~70oC
Relative Humidity
0~95%(non-condensing)
Storage temperature
-40oC~150oC
Dimension
120mm x 82mm x 32mm
Net Weight
200g


Rev: 07/13
