SOA-SLPS091

Zoom

SOA-SLPS091

SOA-SLPS091

Select

Item #: SOA-SLPS091

No ratings.

Bracket PCI to PCI-E 1x Riser Card Extender

66,50 €

Select

Block price:
Frompcs
2 2.5 % Discount
5 5 % Discount
10 10 % Discount
25 12.5 % Discount
50 15 % Discount
75 17.5 % Discount
100 20 % Discount

plus VAT Weight: 0.1 kg RegulÃ€r

RegulÃ€r

Regular

Neu

New

Product images

SOA-SLPS091

Description
Specification

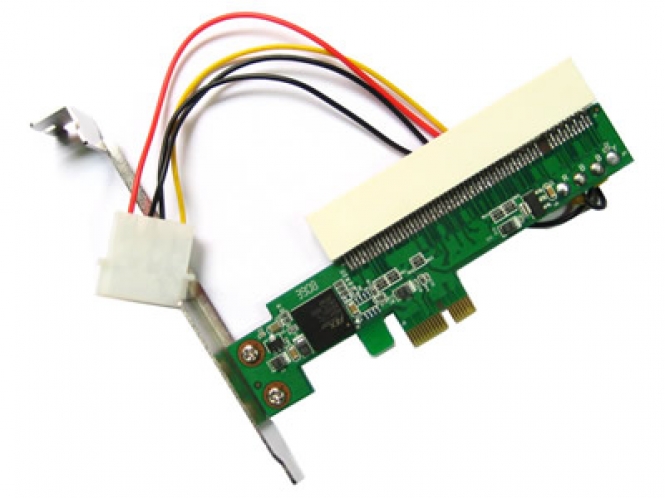

Bracket PCI To PCI-E 1x Riser Card Extender

Model :	SLPS091	Name:	Bracket PCI To PCI-E 1x Riser Card Extender
Description :
The Bracket PCI To PCI-E 1x Riser Card Extender utilizes a PLX Technology PEX 8111 or PEX 8112 PCI to PCI Express bridge chip. It will accept standard or low profile PCI cards. As a generic PCI to PCI Express adapter it should work well with most PCI cards. This adapter allows you to use your existing PCI cards in the PCI Express slot of your mother board. It can accept one of the half height cards designed for 2U server chassis environments, such as a Firewire or Lan card. The 32bit 33MHz adapter’s 4 pin connector is connected directly to the power supply of your PC. The heat generated by the card is very low. The adapter has a bracket with a large gap to allow you to plug things into the card.
Specification & Features:
Easy Plug and Play Installation PCI 32 bit 33Mhz Bus one slot Connects to a standard 5 volt power supply connector Easily fits into standard PC cases PCI Express 1 Lane Port (1 virtual channel), 2.5Gbps per direction Supports PCI 32 bit 33MHz bus one slot PCI-Express Specification Version 1.0 Compliant PCI Specification Version 2.3 Compliant Combination low profile PCI 32 bit host card. Dimension: 125mm x 47mm.(bracket 120mm) . Net Weight: 48g .

Rev: 10/13

Bus	PCI
