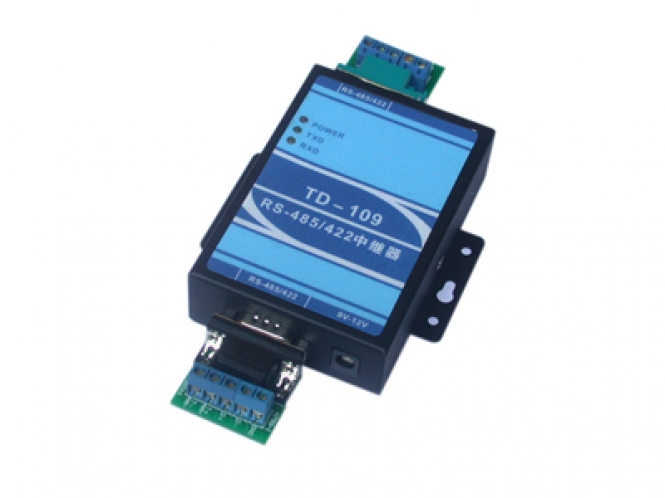

TD-109 RS-485/RS-422 Optical Isolation Repeater
RS-485/RS-422 Optical Isolation Repeater



Model: TD-109
Name: RS-485/RS-422 Optical Isolation Repeater



Description
TD-109 RS-485/RS-422 Repeater(also called Signal Booster, Signal Extender) is professional design for resolve the problem of signal weaken in the signal transmission. it is used industrial-level design, can extend the RS-485/RS-422 signal to 1200m or add 32 node more. at the same time it has lightning protection and optical isolation function for two side RS-485/RS-422 devices. it support RS-485 bus and RS-422 bus switch automatically without manual transfer. it is the best choice for enhancing the RS-485/422 signal!



Feature
  • Standard: Support EIA RS-485, RS-422 standard.
  • Connector: DB9 male with 6 terminal block on RS-485/RS-422 side
  • Transmission medium: UTP-Unshielded Twisted Pair or RS-485 Wire
  • Transmission distance: extend 1200m each one.
  • Baud rate: 300~115000bps.
  • Loading: 32 standard nodes.
  • Surge Protection: 600W.
  • ESD Protection: 15 KV.
  • Isolation Voltage: 2.5KV Instantaneous, 700V DC continuous
  • Dimension: 93mm x 65mm x 25mm.
  • Environment: -20ºC-60ºC working temperature, 5%-95% relative humidity.
  •

Rev: 03/18
