InterGrator i16 16-ports RS-232 sychronous/asychronous DB25 female
Select

  • Block price:

  • pcs
  • 2.5 % Discount
  • 5 % Discount
  • 10 % Discount
  • 12.5 % Discount
  • 15 % Discount
  • 17.5 % Discount
  • 20 % Discount
plus VAT Weight: 1 kg RegulÀr Regular Neu New

The Universal Interface offers RS232/422/423/485 and current loop on each port

The InterGrator UI gives you the ability to select any of the above electrical interfaces on a port by port basis.
The different ports can use a mix of electrical interfaces to perfectly match the requirements of your application, for example: current loop for legacy systems, RS422 for long distance communications, and RS485 for multidrop equipment in industrial control applications.
The InterGrator UI is compatible with all RocketPort ISA and PCI cards requiring an interface, and the InterGrator i, 16 port card. It is an 8 port interface, which can be rackmounted (19", 1U height) or stacked. To obtain 16 or 32 ports you daisy chain the Universal Interfaces together with the cables supplied.

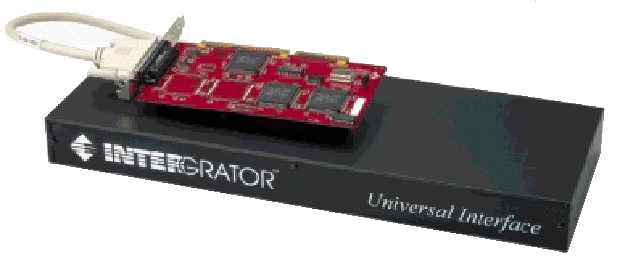

Comtrol Intergrator UI Card


General Specification

Anzahl Ports 8 - 32
Interface types RS232, RS422, RS423, RS485 und current loop
Maximum Baud rate RS232 115,2 KBit/s
RS422 230,4 KBit/s
RS423 115,2 KBit/s
RS485 230,4 KBit/s
Current Loop 9,6 KBit/s
Dimensions 45 x 483 x 202mm
Power Supply +12 DC, 1 amp, DB9 plug +12V, +5V & -5V available on each port
Current Loop-Modes Active-Active, Passive-Passive, Active-Passive
RS485-Modes 2 Wire, 2 Wire hot standby, 4 Wire master, 4 Wire slave, 4 Wire hot standby


Rev: 04/13

Ports 16-Port
