CTI-DGG00x Preis und Lieferbarkeit auf Anfrage

Zoom

CTI-DGG00x Preis und Lieferbarkeit auf Anfrage

Art. Nr.: CTI-DGG00x

Keine Bewertungen

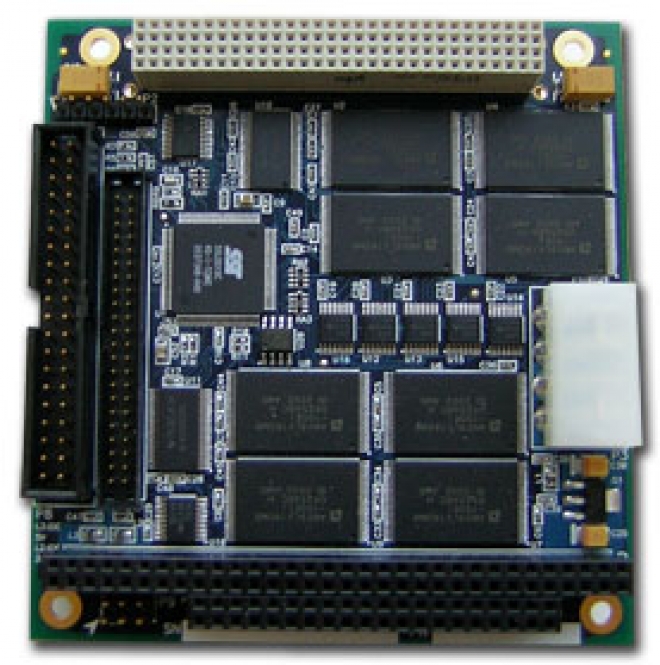

DGG00x FlashDrive/104, xxGB, industrieller Temperaturbereich von -40 bis +85 Grad Celsius - RoHS-konform Preise können sich zum Zeitpunkt des Kaufs aufgrund von Schwankungen der Flash-Preise ändern. Bitte kontaktieren Sie SWD, um die Preise zu bestätigen.

0,00 €

Mengenstaffelpreise:
VonStück
2 2.5 % Rabatt
5 5 % Rabatt
10 10 % Rabatt
25 12.5 % Rabatt
50 15 % Rabatt
75 17.5 % Rabatt
100 20 % Rabatt

zzgl. MwSt. Gewicht: 0.3 kg

DGG00x FlashDrive/104, xxGB, industrial temperature range of -40 to +85 degrees Celsius - RoHS compliant Prices are subject to change at time of purchase due to volatility of flash pricing. Please contact SWD to confirm pricing.

kdb334: Motherboard/SBC Compatibility with the FlashDrive/104 (DGG)

Table of content

Title: Motherboard/SBC Compatibility for the Flashdrive/104 (DGG)
Keywords: PCI-104, PC/104-Plus, CPU Board, SBC, DGG, Flashdrive/104, Compatibility
Date: June 6, 2012
KDB: KDB-335
Revision: 0.02
Author: MF
Distribution: External

Introduction

The FlashDrive/104 uses an ATA/IDE compatible NAND flash controller, to implement the core functionality of the solid state drive.
Unlike the previous generations of the FlashDrive/104 product (DDGxxx, DEGxxx), the DGG is not compatible with 5V signalling levels.

In most cases, this is not an issue as modern single board computers use I/O buffers which drive up to 3.3V as outputs but can receive up to 5V as inputs.

List of Compatible CPU Boards with the DGG FlashDrive/104

The following table lists single board computers which expose IDE/ATA interfaces.

Please contact support@connecttech.com to valid an SBC not listed in this table.

Mfg	PN	Form Factor	Processor	Chipset	ATA Type	ATA Electrical
Lippert	Cool RoadRunner-945GSE	PC/104 Plus	Intel® Atom™ N270	Northbridge Intel 945GSE Southbridge Intel ICH7-M	SATA	N/A
Lippert	Cool RoadRunner-LX800	PC/104 Plus	AMD Geode™ LX800	I/O companion: CS5536 Super I/O: ITE8712	Ultra ATA100 (ATA6)	3.3V buffers w/5 Tolerant I/O
Lippert	Cool RoadRunner-PM	PC/104 Plus	Intel® Pentium® M, Intel® Celeron® M	Northbridge: Intel® i82855GME Southbridge: Intel® i82801DB Super I/O: National PC87364 PCI to ISA bridge: IT8888	EIDE (ATA100)	3.3V buffers w/5 Tolerant I/O
Lippert	Cool SpaceRunner-LX800	PC/104 Plus	AMD Geode™ LX800	I/O companion: CS5536 Super I/O: ITE8712	UDMA-5 (ATA6) port	3.3V buffers w/5 Tolerant I/O
Lippert	Cool FrontRunner	PC/104 Plus
Lippert	Cool RoadRunner 4	PCI-104	Intel® Pentium® M, Intel® Celeron® M	Northbridge: Intel® i82855GME Southbridge: Intel® i82801DB	EIDE (ATA100)	3.3V buffers w/5 Tolerant I/O
Lippert	Cool XpressRunner-GS45	PCI/104-Express	Intel® Core 2 Duo	Intel Mobile GS45	SATA	N/A
Lippert	Cool LiteRunner-ECO	PC/104	Intel Atom Z5#0 prozessor	Intel (SCH) US15W	SATA	N/A
Lippert	Cool LiteRunner-86DX	PC/104	DMP Vortex-86DX CPU	N/A	Ultra ATA100 port	3.3V buffers w/5 Tolerant I/O
Lippert	Cool LiteRunner-LX800	PC/104	AMD Geode LX800	I/O companion: CS5536 Super I/O: ITE8712		3.3V buffers w/5 Tolerant I/O
AAEON	PFM-945C	PCI/104-Express	Intel® Atom™ N270	Intel® 945GSE + ICH7M	SATA
AAEON	PFM-541I	PC/104	AMD Geode™ LX 800	AMD LX 800 + CS5536	EIDE	3.3V buffers w/5 Tolerant I/O
AAEON	PFM-540I Rev.B	PC/104	AMD Geode™ LX 800	AMD LX 800 + CS5536	EIDE	3.3V buffers w/5 Tolerant I/O
AAEON	PFM-535S	PC/104 Plus	DM&P® Vortex86SX® SoC	N/A	EIDE	3.3V buffers w/5 Tolerant I/O
AAEON	PFM-800P	PCI-104	Intel® ULV Celeron® M	Intel® 852GM Intel® 82801DB (ICH4)	EIDE	3.3V buffers w/5 Tolerant I/O
AAEON	PFM-550S	PC/104 Plus	VIA Mark™ 533 MHz	VIA VT82C686B	EIDE
AAEON	PFM-540I	PC/104	AMD Geode™ LX 800	AMD LX 800 + CS5536	EIDE	3.3V buffers w/5 Tolerant I/O

Advantech	PCM-3343	PC/104	DM&P Vortex86DX-1GHz	N/A	IDE	3.3V buffers w/5 Tolerant I/O
Advantech	PCM-3362	PC/104-Plus	Intel® Atom™ N450	Intel Atom N450 + ICH8M	SATA	N/A
Advantech	PCM-3355	PC/104	AMD LX800/LX600	AMD CS5536	SATA (from IDE)	N/A
Advantech	PCM-3353	PC/104-Plus	AMD LX800 CPU	AMD CS5536/CS5535	IDE
Advantech	PCM-3342	PC/104	EVA-X4150 SoC	N/A	SATA (from IDE)	N/A
Advantech	PCM-4153	PC/104-Plus	AMD LX800	AMD CS5536/CS5535	IDE	3.3V buffers w/5 Tolerant I/O
Advantech	PCM-3386	PCI-104	Intel® Celeron® M	Intel 852GM + Intel ICH4	EIDE	3.3V buffers w/5 Tolerant I/O
Advantech	PCM-3380	PCI-105	Intel® Pentium® M	Intel 852GM + Intel ICH4	EIDE
Advantech	PCM-3375	PC/104	VIA Mark CoreFusion	VIA VT82C686B	EIDE
Advantech	PCM-3372	PC/104-Plus	VIA Eden™ (V4) + CX700	VIA XC700	EIDE	?

Rev: 10/21

OS	Microsoft Windows 2000
