COR-CT-N816

Zoom
COR-CT-N816

COR-CT-N816

Select Art. Nr.: COR-CT-N816
CorNet ARCNET Diagnostic-Hub 8-ports Twisted Pair(no CE)
zzgl. MwSt. Gewicht: 2.6 kg RegulÀr Regulär Neu Neu

Corman Tech CT-N816

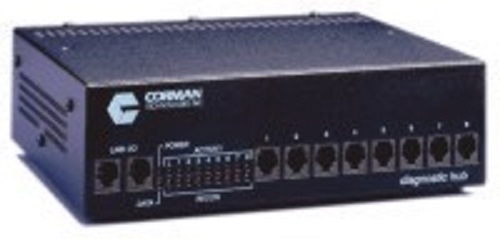

CorNet ARCNET Diagnostic Hub 8 Port Twisted Pair

 Hersteller / producer:  Corman Tech
 Produkt-Bez. / brand name:  CT-N816 no CE
 Rev.:
 Ports:  8
 Topology:  ( - )Bus, ( X )Star , ( X )Linking port available
 Abmessungen/Dimensions:  Breite/Width: 220 [mm] x Tiefe/Deep: 180 [mm] x Höhe/Height: 65 [mm] , Gewicht/Weight: 2,00 [kg]
 Connections:  (    )BNC(600 mtr), ( X )TP/RJ-11(120 mtr),
 Volt(age):  ( - )220/240, ( - )110/130, ( X )220/240<>110/130 [V]
 Netzteil/Power Supply:  ( X ) intern/internal, ( - ) extern/external



Description

This is an ARCNET hub with diagnostic LEDs and linking ports. The CT-N800 series of hubs was created to fill a need for an ARCNET hub with additional diagnostic capabilities for tracking down reconfiguration problems without resorting to the complexity and cost of an "Intelligent Hub". These hubs are built to withstand a wide range of temperature and power line voltage swings. The hubs maintain full output levels even when running at maximum temperature and data traffic loads. This stability is provided through the use of a switching regulator in the power supply and attention to detail in the output driver section. The switching regulator produces less heat and withstands brownouts better than a linear regulator. Proper thermal design ensures that heat produced in the output drivers is dissipated via convection air currents in any acceptable mounting position.

 CT-N816

OPERATING ENVIRONMENT



Power: 120 VAC +6%/- 10% @ l60 mA
240 VAC +6%/- 10% @ 80 mA
50 Hz or 60 Hz
Operating Temperature: 0°C to 55°C
Humidity: 5% to 80% (non-condensing)

ARCNET LAN INTERFACE



Transmit level: 15.4 Vp-p
Receive Sensitivity: 3.0 Vp-p
Connectors: RJ11

PHYSICAL SPECIFICATIONS



Height: 2.75 inches
Width: 8.5 inches
Depth: 7.5 inches (including connectors)
Height: 5 pounds



Included with the hub are two mounting brackets and four bolts for attaching the brackets to the hub. A link cable and one terminator are included for expanding the hub configuration to add more ports or to connect hubs with different types of media. A detachable power cord is also included.

INSTALLATION CONSIDERATIONS
Twisted Pair Cable type

  • Category 3 or better unshielded twisted pair

Twisted Pair Distances

  • rom node to hub 400 ft. (122 m)
  • Total network span up to 4,400 ft. (1342 m)
  • Maximum of 10 active hubs may be between any two nodes on the network

Mounting

  • 19" EIA rack mountable
  • wall mountable
  • stackable (up to 4 hubs)

CONFORMS TO THE FOLLOWING STANDARDS



ARCNET: ANSI 878.1
EMC: EN55022:1994 (Emissions)
CISPR 22 1993-12 Class A
FCC Part 15 Class A
Safety: EN 60950:1992/A1:1993
IEC 950:1991+A1:1992+A2:1993
UL 1950, cUL (CSA 950 accepted equivalent)

Before any unit can leave the factory, an intensive elevated temperature burn-in procedure is performed. Our workmanship and quality control is focused on the goal of customer satisfaction.



Rev: 12/13
