COM-98986-8
98986-8DeviceMaster® RTS 32-Port Rackmount |
|
The Comtrol DeviceMaster RTS 32-Port Rackmount is a 32-port device server designed for network-enabling serial communications devices. When used with the included NSLink™ driver software and a host PC, the DeviceMaster RTS enables placement of COM or TTY ports anywhere on an Ethernet network or across the Internet. In applications where connecting legacy serial devices to a PC without software changes is a requirement, a pair of DeviceMaster RTS units can be used to create a point-to-point serial tunnel across the network that seamlessly transfer serial data via TCP or UDP socket connections.
|
|
| Highlights: | No serial cable distance limitations—enables communication between a host PC and serial devices located anywhere across an Ethernet network |
| Software selectable RS-232, RS-422, or RS-485—serial interfaces simplify setup and eliminate mechanical tampering associated with DIP switch products | |
| Application compatibility—supports native COM, TTY, or TCP/IP Socket communication modes | |
| Highest density single device server—providing 32 serial ports in a 1U rackmount space | |
| Web-based configuration—makes setup and configuration changes quick and easy | |
| Real-time e-mail event notification—alerts administrator of potential connection and security issues | |
| Rugged metal housing—enables rack mounting | |
| Temperature rated for extreme conditions—operating temperature of –37° to 74°C enables DeviceMaster to function in a wide variety of harsh environments | |
| PortVision® enterprise monitoring and management software—automatically monitors devices on the network and enables user to view status, update firmware and resolve issues remotely | |
| Software Developer Kit—available for users interested in writing custom applications to run on the DeviceMaster platform | |

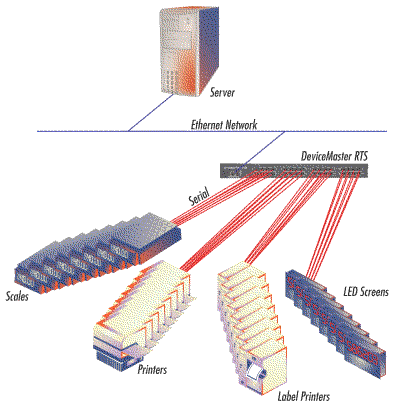

Ethernet-Enabled Serial Devices Using NS-Link COM/TTY Driver
System Specifications |
|
| Hardware | |
| Processor Type | ARM7 44MHz |
| Memory | 8MB SDRAM/4MB flash |
| Enclosure | Black Finished Steel |
| Dimensions | 17.25" x 10.8" x 1.74" |
| Product Weight | 6 lbs 6.4 oz |
| Packaged Shipping Weight | 8.96 Lbs |
| Installation Method | Rack mountable |
| LED Indicators | Status, Ethernet Link/Activity, Collision, 100MB Ethernet, RX/TX per port |
| Device Drivers | |
| Operating System | Microsoft® Windows NT® 4.0 |
| Microsoft® Windows® 2000 | |
| Microsoft® Windows® XP | |
| Microsoft® Windows Server® 2003 | |
| Linux | |
| Electrical Specifications | |
| Current Consumption | 200 mA @ 110VAC |
| Power Consumption | 22.0 Watts |
| Ethernet Specifications | |
| Network Protocols | TCP/IP & UDP socket services, BOOTP, TFTP, ICMP, ARP, SNMP (MIB-II), Telnet, HTTP, DHCP/RARP/Ping |
| Ethernet Host Interface | (1) 10/100 Base-T |
| Serial Communications | |
| Serial Interfaces | RS-232, RS-422, and RS-485 (Software Selectable) |
| Baud Rate | 230.4 Kbps |
| Connector Type | RJ45 Female |
| Surge Protection | Ethernet components are rated to 1.5KV magnetic surge protection, in addition to the serial port ESD surge protection minimum of 15KV @ 200A for a duration of 1ns. |
| Flow Control | Hardware & Software |
| Environmental Specifications | |
| Temperature - System On | -37 to 74° C |
| Temperature - System Off | -40 to 85° C |
| Humidity (Non-Condensing)- System On | 20% to 80% |
| Humidity (Non-Condensing)- System Off | 8% to 80% |
| Altitude | 0 to 10,000 Feet |
| Heat Output | 75.0 BTU/Hr |
| MTBF | 6 Years |
| Features | |
| Other | Event Notification, Watchdog |
| Regulatory Approvals | |
| Immunity |
EN55024: IEC 1000-4-2/EN61000-4-2: ESD, IEC 1000-4-3/EN61000-4-3: RF, IEC 1000-4-4/EN61000-4-4: Fast Transient, IEC 1000-4-5/EN61000-4-5: Surge, IEC 1000-4-6/EN61000-4-6: Conducted distrubance, IEC 1000-4-8/EN61000-4-8:Magnetic field, IEC 1000-4-11/EN61000-4-11: Dips and Voltage Variations |
| Emission | EN55022 & A1; EN61000-3-2, EN61000-3-3, FCC Part 15 Subpart B Class A, IEC 1000-3-2, IEC 1000-3-3, CISPR-22, ICES-003 |
| Safety | EN60950, IEC 60950, CSA C22.2 No. 60950/UL60950 |
| Regulatory Approval Marks | CE Mark, FCC Part 15 Subpart B Class A, C-Tick, CUL |
Dimensions
DB9M Serial Connector Pin Assignments
Rev: 04/13
| Ports | 2-port |
|---|---|
| OS | Microsoft Windows NT |
