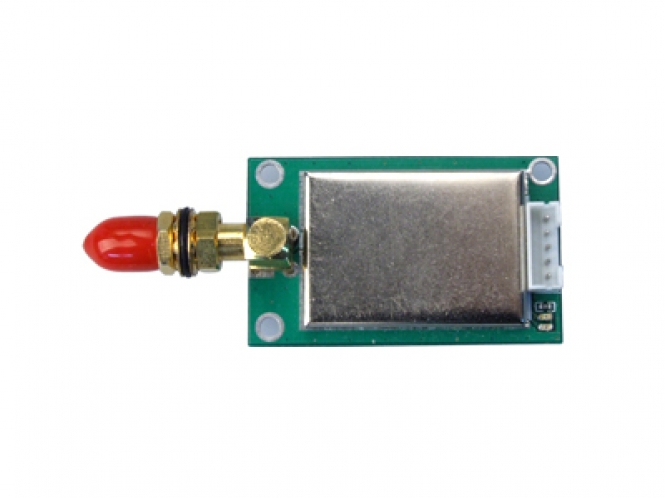

HXJZ-863 200m-500m Micro Power RS-232/RS-485/TTL to RF Wireless Module
Select

  • Block price:

  • pcs
  • 2.5 % Discount
  • 5 % Discount
  • 10 % Discount
  • 12.5 % Discount
  • 15 % Discount
  • 17.5 % Discount
  • 20 % Discount
plus VAT Weight: 0.3 kg RegulÀr Regular Neu New

HXJZ-863 200m-500m Micro Power RS-232/RS-485/TTL to RF Wireless Module
200m-500m Micro Power RS-232/RS-485/TTL to RF Wireless Module



Model: HXJZ-863
Name: 200m-500m Micro Power RS-232/RS-485/TTL to RF Wireless Module



Description
HXJZ-863, the Micro-power wireless transceiver data module is used as the wireless data transceiver in long-ranges, with the small size, weight and power consumption and good stability and reliability.



Specification
  • using FSK modulation, reliable line of sight transmission distance up to 500m;
  • Carrier frequency 433 MHz, can also be ordered 868M/915Mcarrier frequency; ISM band, no applications;
  • provides 8 channels;
  • interface / channel rate: 1200/2400/4800/9600/19200bps;
  • Interface: TTL, RS-232, RS-485 selected by the user;
  • transceiver, half duplex, sending and receiving data conversionautomatically, as long as the interface to send / receive data to the conversion time is short;
  • transparent data transmission, can transmit long data frames;
  • can be used for point to point, multipoint, multi-pointcommunication and other combinations;
  • automatically filter out false data generated in the air, long-term reliability is good, very low failure rate;
  • Low power consumption and sleep function: power 100mw,receiving current <10mA, transmitting current <100mA, Sleep(custom) current <10uA;
  • Power Supply: TTL: DC +2.8 V ~ +3.3 V or +3.6 V ~ +5.5 V, RS232/RS485: DC +4.5 V ~ +5.5 V;
  • Temperature: -25 ℃ ~ +85 ℃;
  • size: 44mm × 27mm × 8mm (without antenna); Weight: 14grams;
  • exchange model: HXJZ-86 Series
  • Standard antenna: a small rod antenna.



Feature

Using CC1000 chip, bare boards, small size, easy to useembedded.
Receiving a small current, RF shielding methods, interference is strong, stable and reliable transmission.



Antennas
RF Module Antennas



Application
  • AMR Automatic Meter Reading
  • Wireless alarm and security systems
  • Home automation
  • Low power telemetry
  • Wireless conference voting system;
  • Sports training & competition;
  • Wireless dishes ordering;
  • Wireless POS, PDA wireless smart terminal;
  • Electronic bus station and intelligent traffic;
  • RF transmitter Wireless electronic display screen and queuing machine;
  • Wireless telemetry Charging for parking, parking lot;
  • Wireless modem Automobile inspection and four-wheel orientation;
  • Wireless sensor Industrial wireless remote control and air conditioning remote controller;
  • Observation and predication of oil well and hydrological information;
  • Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;

Rev: 07/13
