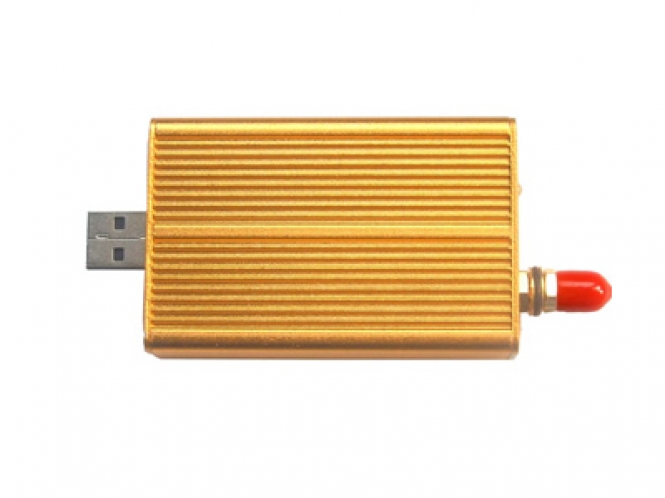

HXJZ-864A 200m-500m Micro Power USB to RF Wireless Module
200m-500m Micro Power USB to RF Wireless Module



Model: HXJZ-864A
Name: 200m-500m Micro Power USB to RF Wireless Module



Description
HXJZ-864A, the MINI-power wireless transceiver data module is used as the wireless data transceiver in short-ranges, with the small size, weight and power consumption and good stability and reliability.



Specification
  • using FSK modulation, reliable line of sight transmission distance up to 500m;
  • Carrier frequency 433 MHz, can also be ordered 868M/915Mcarrier frequency; ISM band, no applications;
  • provides 8 channels;
  • interface / channel rate: 1200/2400/4800/9600/19200bps;
  • Interface: USB;
  • transceiver, half duplex, sending and receiving data conversionautomatically, as long as the interface to send / receive data to the conversion time is short;
  • transparent data transmission, can transmit long data frames;
  • can be used for point to point, multipoint, multi-pointcommunication and other combinations;
  • automatically filter out false data generated in the air, long-term reliability is good, very low failure rate;
  • Low power consumption and sleep function: power 100mw,receiving current <10mA, transmitting current <100mA, Sleep(custom) current <10uA;
  • Power Supply: DC +4.5 V ~ +5.5 V;
  • Temperature: -25 ℃ ~ +85 ℃;
  • size: 44mm × 27mm × 8mm (without antenna); Weight: 14grams;
  • exchange model: HXJZ-86 series;
  • Standard antenna: a short elbow antenna, antenna long elbow.



Feature

Using CC1000 chip, small size, aluminum casing, USB interface,plug and play, easy to use
High receiver sensitivity, stable and reliable transmission.



Antennas
RF Module Antennas



Application
  • AMR Automatic Meter Reading
  • Wireless alarm and security systems
  • Home automation
  • Low power telemetry
  • Wireless conference voting system;
  • Sports training & competition;
  • Wireless dishes ordering;
  • Wireless POS, PDA wireless smart terminal;
  • Electronic bus station and intelligent traffic;
  • RF transmitter Wireless electronic display screen and queuing machine;
  • Wireless telemetry Charging for parking, parking lot;
  • Wireless modem Automobile inspection and four-wheel orientation;
  • Wireless sensor Industrial wireless remote control and air conditioning remote controller;
  • Observation and predication of oil well and hydrological information;
  • Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;
  •

Rev: 07/13
