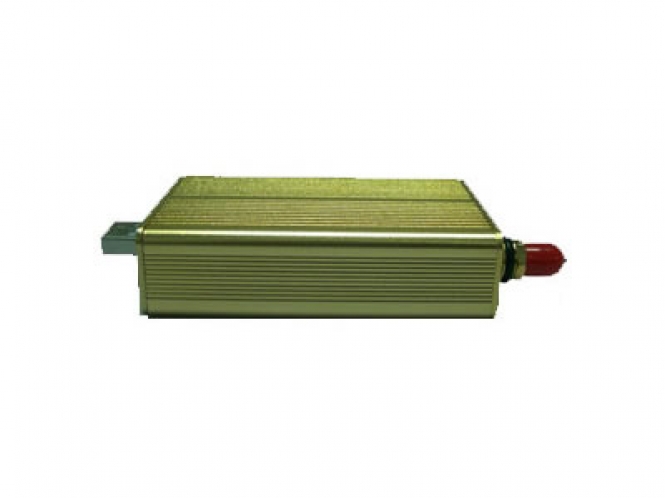

HXJZ-874 800m-1200m Low Power USB to RF Wireless Module
800m-1200m Low Power USB to RF Wireless Module



Model: HXJZ-874
Name: 800m-1200m Low Power USB to RF Wireless Module



Description
HXJZ-874, the Low-power wireless transceiver data module is used as the wireless data transceiver in long-ranges, with the small size, weight and power consumption and good stability and reliability.



Specification
  • uses GFSK modulation mode, reliable line of sight transmission distance up to 800m;
  • Carrier frequency 433 MHz, can also be ordered 868M/915Mother carrier; ISM band, no applications;
  • provides 8 channels;
  • interface / channel rate: 1200/2400/4800/9600/19200/38400bps;
  • Interface: USB;
  • transceiver, half duplex, sending and receiving data conversionautomatically, as long as the interface to send / receive data to the conversion time is short;
  • can be used for point to point, multipoint, multi-pointcommunication and other combinations;
  • transparent data transmission, can transmit long data frames;
  • automatically filter out false data generated in the air, long-term reliability is good, very low failure rate;
  • Power requirements: DC +4.5 V ~ +5.5 V;
  • Low power consumption: Power 100mw, receiving current<35mA, transmitting current <100mA, Sleep (custom) current<15uA;
  • Temperature: -25 ℃ ~ +85 ℃;
  • size: 44mm × 27mm × 8 mm (excluding antenna); Weight: 13grams;
  • exchange model: HXJZ-87 series;
  • Standard antenna: antenna short elbow, bend the antenna or a small suction cup long antenna.



Feature

Using CC1020 chip, bare boards, small size, easy to useembedded.
Narrowband interference is strong, high receiver sensitivity, transmission is stable and reliable.



Antennas
RF Module Antennas



Application
  • AMR Automatic Meter Reading
  • Wireless alarm and security systems
  • Home automation
  • Low power telemetry
  • Wireless conference voting system;
  • Sports training & competition;
  • Wireless dishes ordering;
  • Wireless POS, PDA wireless smart terminal;
  • Electronic bus station and intelligent traffic;
  • RF transmitter Wireless electronic display screen and queuing machine;
  • Wireless telemetry Charging for parking, parking lot;
  • Wireless modem Automobile inspection and four-wheel orientation;
  • Wireless sensor Industrial wireless remote control and air conditioning remote controller;
  • Observation and predication of oil well and hydrological information;
  • Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;

Rev: 07/13
