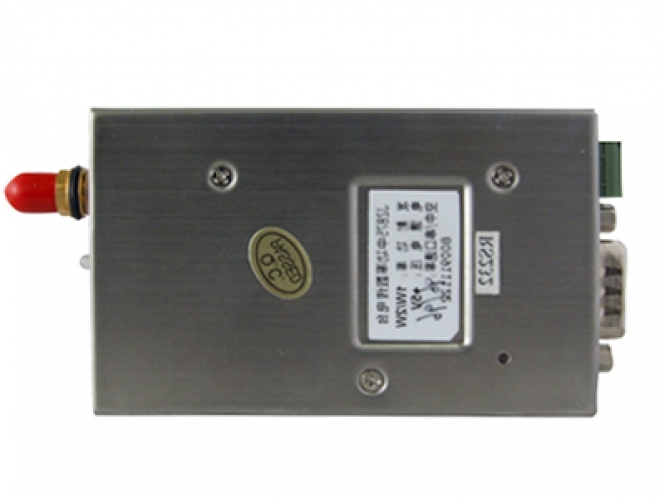

SOA-HXJZ-875

• uses GFSK modulation mode, reliable line of sight transmission distance up to 2Km ~ 10Km;
• Carrier frequency 433 MHz;
• provides 16 channels;
• interface / channel rate: 1200/2400/4800/9600/19200/38400bps;
• Interface: TTL, RS-232, RS-485 selected by the user;
• send and receive data conversion automatically, as long as theinterface to send / receive data to the conversion time is short;
• can be used for point to point, multipoint, multi-pointcommunication and other combinations;
• transparent data transmission, can transmit long data frames;
• automatically filter out false data generated in the air, long-term reliability is good, very low failure rate;
• Power: Power 2w / 1w, receiving current <50mA, transmitting current is <1.5A, Sleep current <0.1mA;
• power saving mode: hardware wake-up;
• Power Supply: DC +4.5 V ~ +5.5 V;
• Temperature: -40 ℃ ~ +85 ℃;
• size: 90mm × 64mm × 23 mm (without antenna base);
• exchange model: HXJZ-87 series;
• Standard Antenna: SMA thick whip antenna or a small suction cup.

Using CC1020 chip, bare boards, small size, easy to useembedded.
Narrowband interference is strong, with a filter circuit, high receiver sensitivity, power, transmission is stable and reliable distance.

• AMR Automatic Meter Reading
• Wireless alarm and security systems
• Home automation
• Low power telemetry
• Wireless conference voting system;
• Sports training & competition;
• Wireless dishes ordering;
• Wireless POS, PDA wireless smart terminal;
• Electronic bus station and intelligent traffic;
• RF transmitter Wireless electronic display screen and queuing machine;
• Wireless telemetry Charging for parking, parking lot;
• Wireless modem Automobile inspection and four-wheel orientation;
• Wireless sensor Industrial wireless remote control and air conditioning remote controller;
• Observation and predication of oil well and hydrological information;
• Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system;
