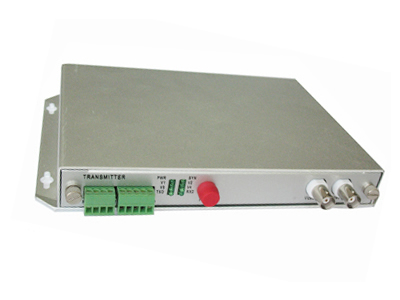

SOARLAND 2-channel Video + 1-channel Reverse Data Optical Transmitter & Receiver
Select

  • Block price:

  • pcs
  • 2.5 % Discount
  • 5 % Discount
  • 10 % Discount
  • 12.5 % Discount
  • 15 % Discount
  • 17.5 % Discount
  • 20 % Discount
plus VAT Weight: 0.7 kg RegulÀr Regular Neu New



Hexin HX-DV201DWF

2-Channel Video + 1-Channel Reverse Data Optical Transmitter & Receiver
Features:
  • Card insertion type or independent structure suitable for concentration management of 2 U racks
  • 10 digit coding and non-compression video transmission
  • Supporting any high –resolution video signal
  • SHz-10MHz video channel
  • Automatically compatible with PAL, NTSC and SECAM video mode
  • With APC circuit, constant output optical power and wide dynamic range
  • Large capacity of gigabit optical fiber transmission allowing of easy upgrade
  • LED with indication of power and other parameter status, allowing of monitoring system operation
  • Supporting video intact regenerative relay
  • Advanced adaptive technology avoiding on-site electric or optical regulation
  • Modularized and industrialized design ensuring reliability and flexibility
  • Capable of auto resumption of power fuse
  • Featuring built in power supply and unique designed housing
  • Interior power consumption: 2.5 w(Input:AC140~260V)
Video Specification:
Channel 2
Connector BNC
Input/output impedance 75 Ohm (unbalanced)
Input/output amplitude 1VP - P (peak value)
Bandwidth 8MHz
Differential gain (10%-90%APL) DG <0.5% (typical value)
Differential phase (10%-90%APL) DP <0.4%( typical value)
Video SNR S/N > 70dB (maximum optical link path loss)
Data:
Channel 1 reverse
Interface terminal RJ-45
Interface signal RS-232 RS-422(full duplex) RS-485 (2/4 wiring system)
Bit rate 0~256Kbps
Error bit rate <10^9
Environment:
Operating temperature -30oC~+75oC
Storage temperature -40oC~+85oC
Relative humidity 0-95% Non-Condensing
Power voltage AC220V/50Hz
MTBF >10^5 hours



Rev: 04/13
